Application
Application :
This machine can be applied to round fruits and vegetables, and other round shape objects, such as oranges, apples, peaches, plums, nectarines, pears, mandarins grape fruits, lemons, limes, kiwi fruits, tomatoes, onions, garlic bulbs, avocadospersimmons, ball-shaped candy, chocolate truffles, bath bombs, small round soap bars, tennis balls, etc.
Kindly Reminder :
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers :

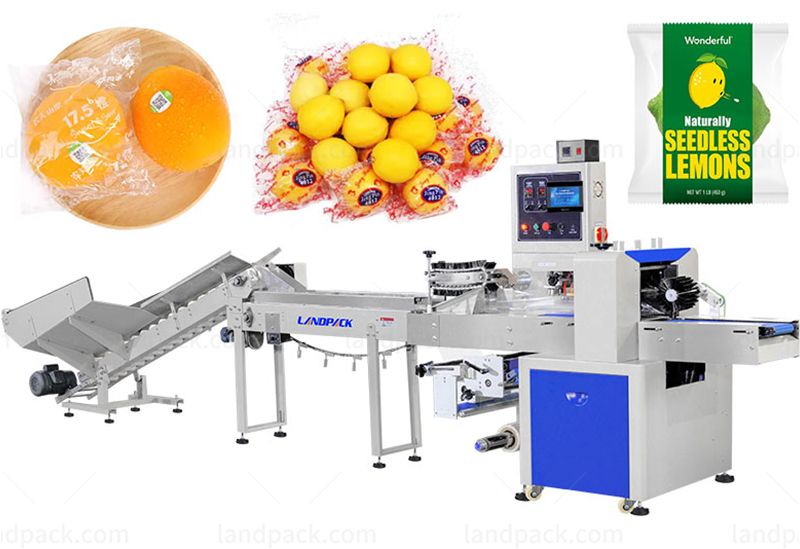

Features:
1. The machine features automatic orange feeding to minimize labor costs while maintaining hygienic production standards.
2. A specialized brush and pusher conveyor system ensures stable orange positioning during transport, preventing unwanted rolling.
3. The innovative brush bag former stabilizes oranges during packaging for precise sealing and cutting accuracy.
4. An integrated drag chain mechanism on the end sealer securely holds oranges in place to prevent product loss.
5. Engineered for reliable operation with consistently smooth sealing and clean, attractive cuts on finished packages.
Work Flow:

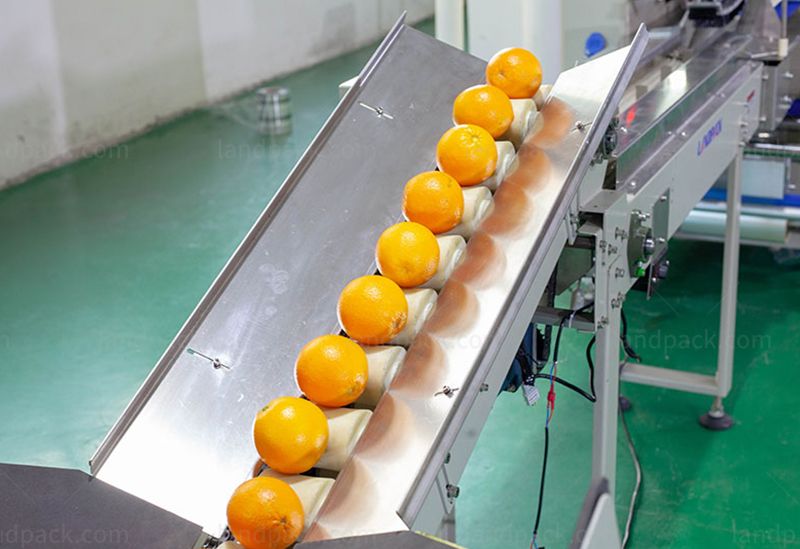

1. Smart Automatic Loading and Feeding.
2. Brush and Pushers Feeding Conveyor.

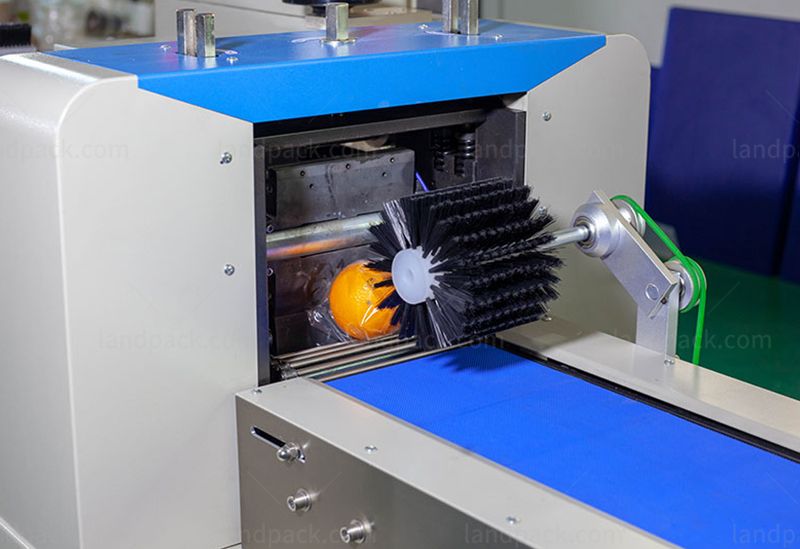

3. Brush Bag Former to Fix Oranges.

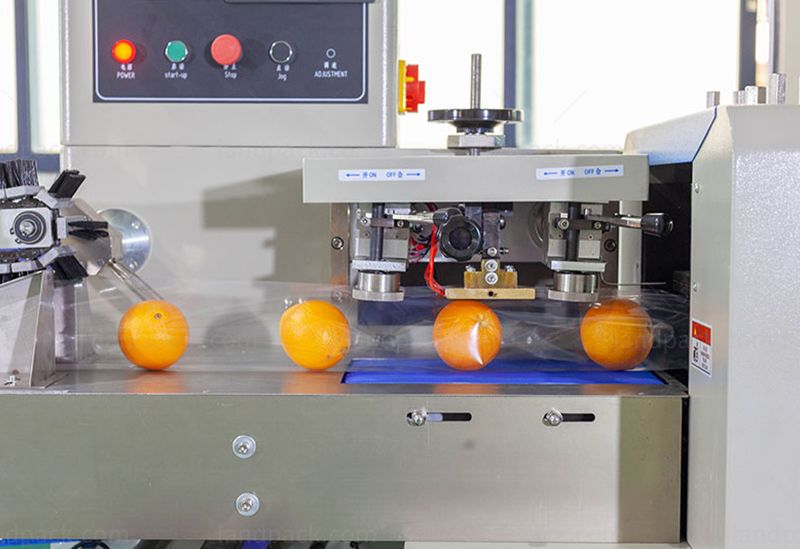

4. Middle Sealed.
5. End Sealed and Cut.
6. Finished and Outlet.
Specifications:
| Model | LP-450X | LP-600X | LP-700X |
| Film width | Max.450mm | Max.600mm | Max.700mm |
| Bag length | 120-450mm | 120-500mm | 120-600mm |
| Bag width | 50-180mm | 100-280mm | 100-330mm |
| Product height | Max.80mm | Max.110mm |
| Max width of film roll | Max.320mm |
| Packing speed | 40-150bags/min | 20-150bags/min | 20-130bags/min |
| Power | 220V,50/60Hz,2.8KW |
| Machine size (L*W*H)mm | 4020*820*1450 | 4020*920*1460 | 4020*980*1480 |
| Machine weight | 650kg | 680kg | 720kg |
Optional Devices:
Date Coder
Automatic Punching Device
Auto labeling device
Nitrogen generator
