Application:

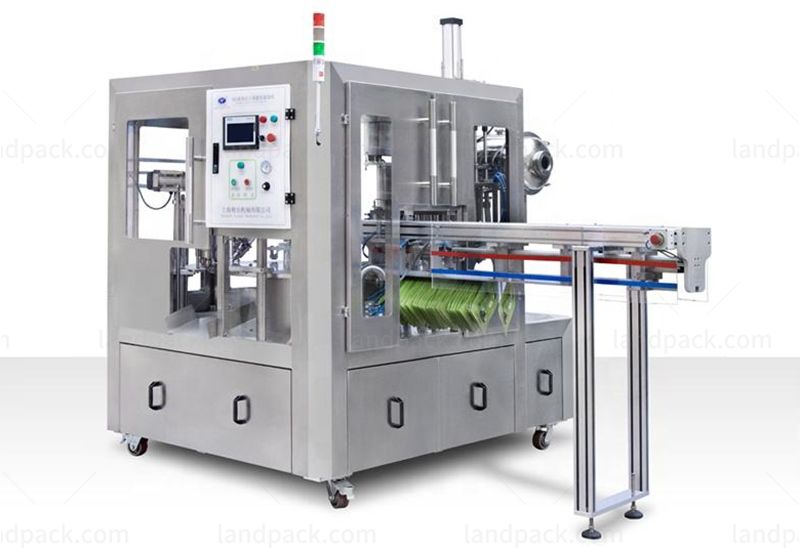

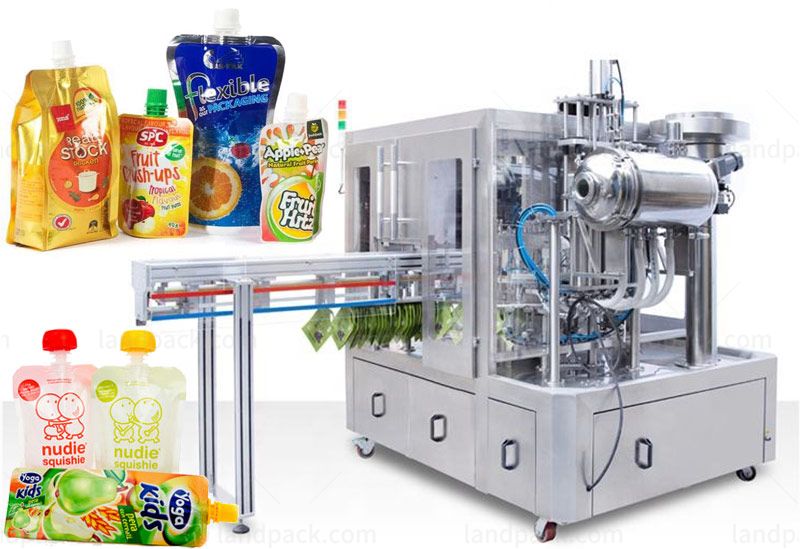

High speed fruit jelly spout pouch filling capping and packaging machine(LD-830L), it is suitable for spout pouches and stand-up pouches for various liquid products, such as juice, laundry detergent, sauce, jelly, butter, paste, chemical liquid, etc.
Applicable Pouches: Spout Pouch, Stand-Up Pouch, Doypack, Bags, Pouch, Etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
1. The factory production of LD-820 series of standup pouch filling capping machine, are automatic high-speed filling production line, from the bag, filling, cover, gland are fully automatic operation.
2. Electrical and pneumatic components are used both at home and abroad brand-name manufacturers of products, stable quality, long life
3. Important mechanical parts are used advanced precision machining center production, so the mechanical with a good, smooth work, advanced quality and reliable performance.
4. The machine adopts the new design more energy-efficient, the structure is reasonable and beautiful, adopts the acid-proof stainless steel material, each section can run independently, conforms to the hygienic standard, is convenient for the maintenance and is the automatic production line which is the self-standing bag product.
Specifications:
| Model | LDS-25 | LDS-4S | LDS-6S |
| Filling nozzles | 2 | 4 | 6 |
| Capping heads | 2 | 4 | 6 |
| Bag type | Pouch with spout and cap |
| Filling material | liquids, paste, oil, juice etc material that get ability to flow. |
| Filling range | 10-350 ml |
| Capacity (for 250g filling) | 1500-2000BPH | 3500-4000BPH | 4500-6000BPH |
| Power supply | AC 220V/380V 50/60Hz (can be customized based on different voltages) |
| Weight | 900kg | 1100kg | 1200kg |
Optional Devices:
1. Automatic bag feeding
2. dust cover
3. Lifting machine
4. Inkjet printer
5. conveyor
