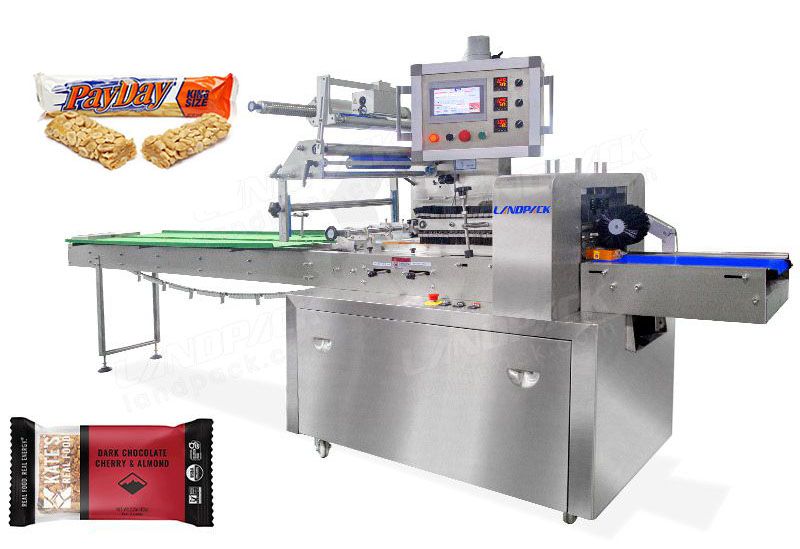

Candy Bar Packaging Machine Full 304 Stainless Steel

Modle: LP-250B

Application: It is suitable for the packaging of conventional items such as bread, biscuits, ice cream, pies, chocolate, instant noodles, moon cakes, medicines, daily necessities, industrial parts, paper boxes, or trays.

Get Price Send Email

Candy Bar Packaging Machine Full 304 Stainless Steel

Modle: LP-250B

Get Price Send Email

Application
Features
Specifications
Video

Application

Application:

It is suitable for the packaging of conventional items such as bread, biscuits, ice cream, pies, chocolate, instant noodles, moon cakes, medicines, daily necessities, industrial parts, paper boxes or trays.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

Candy Bar Packaging Machine Full 304 Stainless Steel

Features:

Compact machine structure with smaller footprint area.

Carbon steel or stainless steel machine frame with a nice appearance.

Optimized component design realizing fast and stable packing speed.

Servo control system with higher accuracy and flexibility mechanical motion.

Different optional configurations and functions meeting different specific requirements.

High accuracy of color mark tracking function.

Easy to use HMI with memory function.

Specifcations:

Model	LP-250B	LP-350B	LP-450B
Film width	Max250mm	Max350mm	Max450mm
Bag length	65-190mm or120-280mm	65-190mm or120-280mm	150-450mm
Bag width	30-110mm	50-160mm	50-180mm
Product height	Max.40mm	Max.40mm	Max.75mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180bags/min	30-150Bags/min
Power	220V,50/60Hz,2.4kw	220V,50/60Hz,2.6kw	220V,50/60Hz,2.8kw
Machine size	（L）3770（W）720（H）1420mm	（L）4030（W）770（H）1420mm	(L)4030(W)820(H)1420mm
Machine quality	About 500kg	About 580kg	About650kg
Remarks	optional air filling device）/optional angle folding）
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film
